KNOWLEDGE BASE · Setup & adjustment · Mounting & first assembly

Mounting the side footrests

The box contains 2 left + 2 right side footrests, unmounted. They fit either side of the pedal face — choose the higher or lower side wall per…

  • PurrPRO FORMULA PEDALS
  • Updated 6 Sep 2026
  1. The box contains 2 left + 2 right side footrests, unmounted. They fit either side of the pedal face — choose the higher or lower side wall per preference.
  2. Pop the carbon pedal face off using a small plastic tool in the bottom cutout. It’s held by magnets — little force needed.
  3. Bolt the footrests through the 4 M4 through-holes in your chosen position.
  4. Re-seat the carbon face flush with the thicker comfort plate.

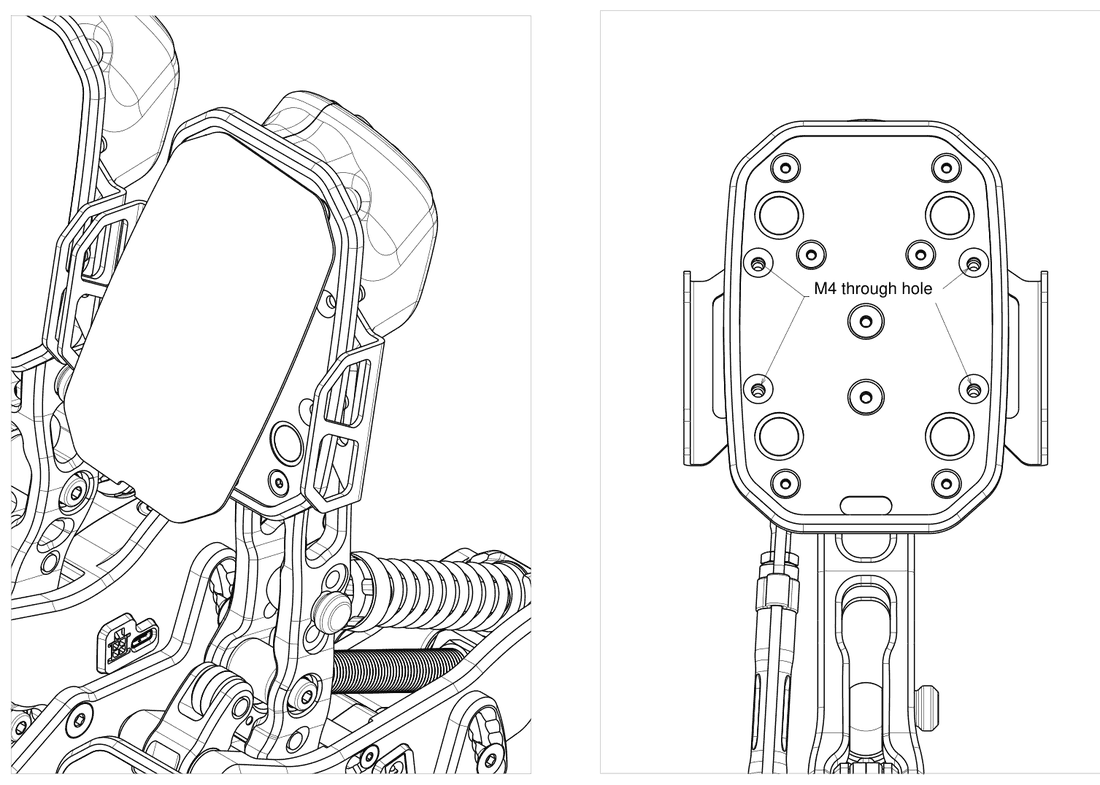

Side footrest mounting — pedal side view and M4 through-hole pattern
Side footrests bolt through 4× M4 through-holes (right: the hole pattern with the carbon face removed). PurrPRO manual v1.05
First-batch noteSome first-batch sets had weak glue on the magnetic stickers. Fix: re-seat the magnet glue-side-up inside the carbon part, press in place; a tiny amount of superglue is OK — a full drop will glue the two carbon parts together.
